The Sony PlayStation 1, commonly known as the PS1, revolutionized the gaming industry with its impressive library of games and groundbreaking technology. While many remember the console for its unforgettable games, the technical details, like the connectors used to hook up the system, are often overlooked. In this article, we’ll explore what the PS1 connector is called, its functions, and how it fits into the gaming world.
Understanding the PlayStation 1 Connectors
When you look at the back of a PS1, you’ll notice several connectors that serve different purposes. Each connector played a crucial role in ensuring that the gaming experience was seamless and enjoyable.
AV Multi Out Connector

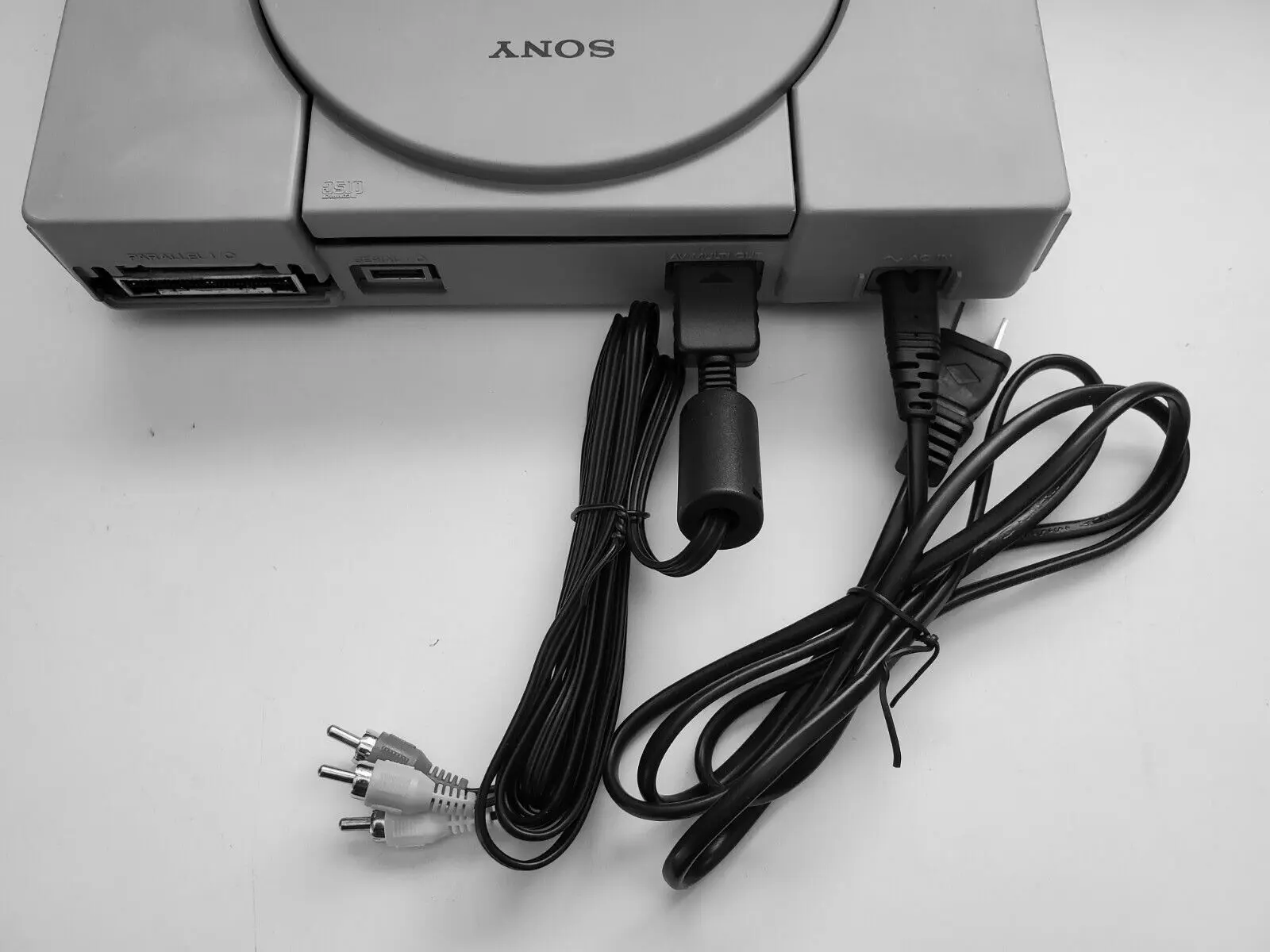

The primary connector for the PS1 is the AV Multi Out connector. This versatile connector is responsible for transmitting audio and video signals from the console to your TV. It’s called the “AV Multi Out” because it supports multiple types of cables, allowing for various audio and video output options.
The AV Multi Out connector is the same type used in later PlayStation models, such as the PS2 and PS3, making it a consistent choice for Sony’s consoles. This connector supports composite video, S-Video, and RGB video outputs, ensuring compatibility with a wide range of televisions.
Power Connector
Another vital connector on the PS1 is the power connector. The PS1 uses a standard power cable, which connects to the console through a small, round port. This connector is responsible for supplying the necessary electrical power to the console, allowing it to function properly.
Controller Ports
The PS1 features two controller ports on the front of the console. These ports are where you plug in the iconic PS1 controllers, which allowed for hours of gaming fun. The connectors used for these ports are proprietary and were designed specifically for the PS1 controllers.
Memory Card Slots
Memory cards were an essential accessory for PS1 gamers, as they allowed players to save their progress in games. The PS1 features two memory card slots, each with a connector designed to interface with the memory card. These connectors were also proprietary and played a significant role in the gaming experience by enabling players to store and access their game data.
Different Types of Cables for the AV Multi Out Connector
The versatility of the AV Multi Out connector means that it can accommodate various types of cables, each with its unique benefits. Here, we’ll explore the different types of cables that can be used with this connector.
Composite Video Cable
The composite video cable is the most common type of cable used with the PS1. It features three RCA connectors: one for video (yellow) and two for audio (red and white). This cable provides a standard-definition video signal and stereo audio, making it a popular choice for most gamers.
S-Video Cable
The S-Video cable is an upgrade from the composite video cable, offering improved video quality. It separates the video signal into two components: luminance and chrominance, resulting in a sharper and clearer image. However, not all TVs have an S-Video input, so compatibility may be limited.
RGB SCART Cable
The RGB SCART cable provides the best video quality for the PS1, offering a higher resolution and more vibrant colors compared to composite and S-Video cables. This cable is popular among gamers who want the best possible picture quality for their classic gaming experience. However, it is essential to note that RGB SCART cables are primarily used in Europe, and not all TVs in other regions support this type of connection.
Setting Up Your PS1 with the Right Connectors
To get the most out of your PS1 gaming experience, it’s crucial to set up your console with the appropriate connectors and cables. Follow these simple steps to ensure a seamless setup:
Step 1: Connect the AV Multi Out Cable
Choose the appropriate cable for your TV, whether it’s composite, S-Video, or RGB SCART. Plug the cable into the AV Multi Out connector on the back of the PS1, and then connect the other end to your TV’s corresponding input.
Step 2: Connect the Power Cable
Insert the power cable into the PS1’s power connector and plug the other end into a power outlet. Ensure that the connection is secure to avoid any power interruptions during gameplay.
Step 3: Attach the Controllers
Plug your PS1 controllers into the controller ports on the front of the console. Make sure the connectors are fully inserted to ensure a proper connection.
Step 4: Insert Memory Cards
If you have memory cards, insert them into the memory card slots on the front of the console. This will allow you to save your game progress and access saved data when needed.
Troubleshooting Common PS1 Connector Issues
While the PS1 connectors are generally reliable, you may encounter some issues during setup or gameplay. Here are some common problems and their solutions:
No Video or Audio Output
If you’re not getting any video or audio output from your PS1, ensure that the AV Multi Out cable is securely connected to both the console and the TV. Also, check that your TV is set to the correct input source.
Intermittent Power Issues
If your PS1 is experiencing power interruptions, double-check the power cable connection at both the console and the power outlet. If the issue persists, try using a different power cable or outlet.
Controller Connectivity Problems
If your controllers aren’t responding, ensure that they’re properly connected to the controller ports. If the problem continues, try using a different controller to determine if the issue lies with the port or the controller itself.
Conclusion
The PS1 connectors, particularly the AV Multi Out connector, play a vital role in the overall gaming experience. Understanding these connectors and their functions can help you set up your console correctly and troubleshoot any issues that may arise. By following the steps outlined in this article, you can ensure a seamless and enjoyable gaming experience with your PlayStation 1.
